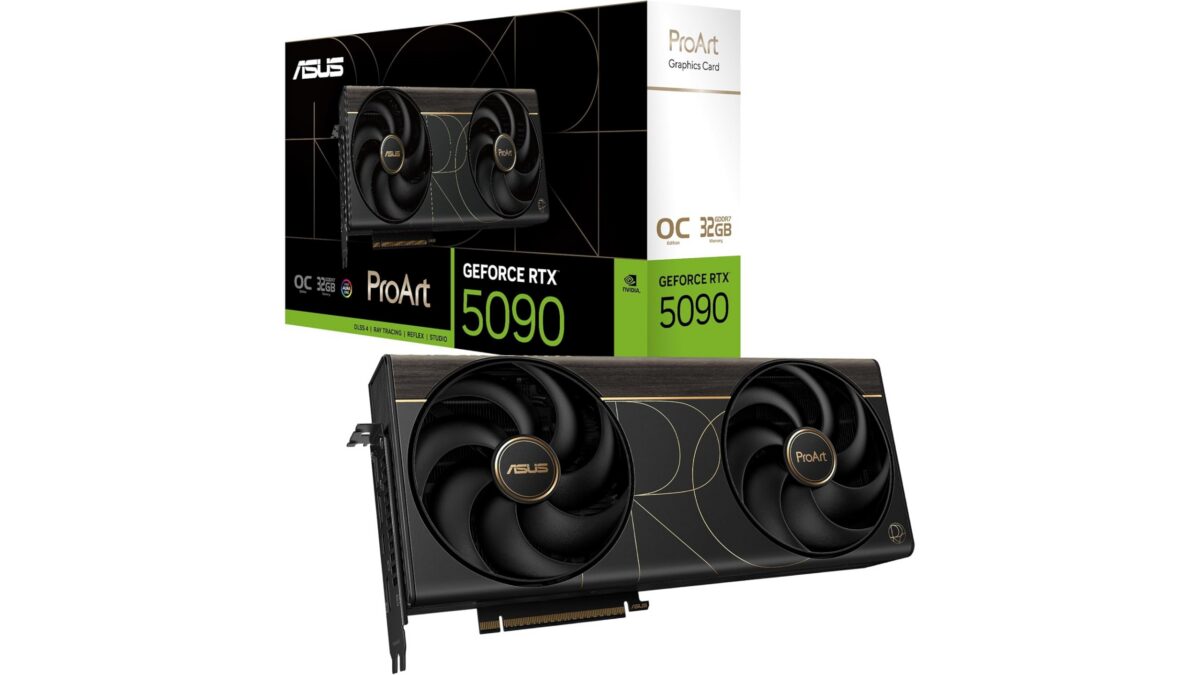

ASUS has listed the ProArt NVIDIA GeForce RTX 5090 32GB GDDR7 OC Edition (PROART-RTX5090-O32G) on Amazon US. The graphics card runs on the NVIDIA Blackwell architecture with 21,760 CUDA Cores, a 2.5-slot SFF-ready footprint, and liquid metal thermal compound for enhanced GPU cooling.
Key highlights include the 32GB GDDR7 memory on a 512-bit interface, DLSS 4.5 support with 3,352 AI TOPs, dual large Axial-tech fans with vapor chamber cooling, and an integrated USB Type-C port for content creation workflows.
The ASUS ProArt NVIDIA GeForce RTX 5090 32GB GDDR7 OC Edition (PROART-RTX5090-O32G) features a minimalist aesthetic with brown wood-patterned laminate trim and subtle ProArt design elements.
Pricing & Availability
| Model | Launch Price | Link |
|---|---|---|
| ASUS PROART-RTX5090-O32G | Check Amazon | Amazon US↗ |

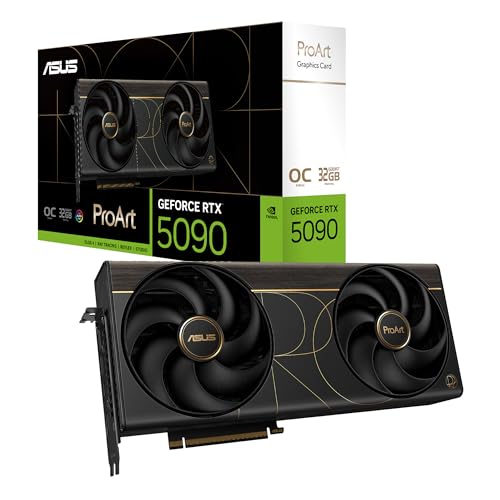

ASUS ProArt NVIDIA GeForce RTX 5090 32GB GDDR7 OC Edition Graphics Card (PCIe 5.0, USB Type-C, HDMI®/DP 2.1, 2.5-Slot, SFF Ready, Axial-tech Fans, Vapor Chamber Liquid Metal Thermal), 3 Year Warranty
by ASUS
GPU & Performance
Under the hood is the NVIDIA GeForce RTX 5090 built on the NVIDIA Blackwell architecture. Clock speeds reach 2,512 MHz in OC Mode and 2,482 MHz in Default Mode. The GPU delivers 3,352 AI TOPs of AI compute performance.
Clock Speeds
| Mode | Clock Speed |
|---|---|
| OC Mode | 2,512 MHz |
| Default Mode | 2,482 MHz |
AI & Ray Tracing
- DLSS 4.5 — Multi Frame Generation, Super Resolution, Ray Reconstruction
- NVIDIA Blackwell Ray Tracing Cores and Tensor Cores on-chip
- 3,352 AI TOPs total AI performance
Memory
| Specification | Details |
|---|---|
| Memory Size | 32GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
Cooling System
This is the first 2.5-slot RTX 5090 from ASUS. Two large Axial-tech fans — redesigned for higher airflow and air pressure — sit atop a vapor chamber with heatpipes for heat dissipation across the card. A double-vented backplate allows airflow through the rear, improving cooling efficiency by 11% compared to a solid backplate.
Liquid metal thermal compound replaces conventional paste at the GPU die, allowing more efficient heat transfer and a higher sustained boost clock. The power receptacle is angled to maximize clearance for cable routing in compact enclosures.
SFF-Ready 2.5-Slot Design
The ASUS ProArt NVIDIA GeForce RTX 5090 32GB GDDR7 OC Edition (PROART-RTX5090-O32G) uses a compact multi-board PCB design paired with a double flow-through cooling layout — both features specifically targeted at small form factor builds. At 2.5 slots, it is compatible with SFF cases that do not accommodate a full 3-slot card. ASUS marks it as SFF Ready.
Display Outputs
| Port | Quantity | Version |
|---|---|---|
| HDMI | 1 | Native HDMI 2.1b |
| DisplayPort | 2 | Native DisplayPort 2.1b |
| USB Type-C | 1 | — |
The card supports up to 4 simultaneous displays at a maximum digital resolution of 7,680 × 4,320 (8K). HDCP 2.3 is supported. The USB Type-C port enhances versatility for content creation peripherals and direct display connections.
Power Requirements
| Specification | Details |
|---|---|
| Bus Standard | PCI Express 5.0 |
| Recommended PSU | 1,000W |
| Power Connector | 1-to-4 adapter cable (included) |
Software
The card is compatible with GPU Tweak III for performance tuning, thermal monitoring, and fan curve control. MuseTree software is also included. GPU drivers are available via GeForce Game Ready Driver and Studio Driver, downloadable from the ASUS support site.
ASUS ProArt NVIDIA GeForce RTX 5090 32GB GDDR7 OC Edition (PROART-RTX5090-O32G) Specifications / Technical Details
| Specification | Details |
|---|---|
| Model | PROART-RTX5090-O32G |
| GPU | NVIDIA GeForce RTX 5090 |
| Architecture | NVIDIA Blackwell |
| AI Performance | 3,352 TOPs |
| CUDA Cores | 21,760 |
| Boost Clock (OC Mode) | 2,512 MHz |
| Boost Clock (Default Mode) | 2,482 MHz |
| Memory Size | 32GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Bus Standard | PCI Express 5.0 |
| Display Outputs | 1× HDMI 2.1b, 2× DisplayPort 2.1b, 1× USB Type-C |
| Max Simultaneous Displays | 4 |
| Max Resolution | 7,680 × 4,320 |
| HDCP | 2.3 |
| Slot | 2.5 Slot |
| SFF Ready | Yes |
| Dimensions | 304 × 140 × 50 mm (11.97 × 5.51 × 1.97 in) |
| Recommended PSU | 1,000W |
| OpenGL | OpenGL 4.6 |
| DLSS | 4.5 |
| Thermal Compound | Liquid Metal |
| Cooling | Dual Axial-tech Fans, Vapor Chamber, Heatpipes, Double-vented Backplate |
| Warranty | 3 Years |
What’s in the Box
- ASUS PROART-RTX5090-O32G Graphics Card
- Speedsetup Manual
- PROART Graphics Card Holder
- ASUS Velcro Hook & Loop
- Adapter Cable (1 to 4)
- Thank You Card
FAQ / Common Questions
What GPU is inside the ASUS PROART-RTX5090-O32G?
It is based on the NVIDIA GeForce RTX 5090 built on the NVIDIA Blackwell architecture, with 21,760 CUDA Cores and 3,352 AI TOPs.
What is the memory configuration of the ASUS PROART-RTX5090-O32G?
It carries 32GB of GDDR7 memory running at 28 Gbps on a 512-bit interface.
Is the ASUS PROART-RTX5090-O32G compatible with small form factor cases?
Yes — it is marked SFF Ready. The 2.5-slot footprint and compact multi-board PCB are designed for SFF enclosures. Always verify your case’s GPU length limit against the card’s 304mm length before purchasing.
What cooling does the ASUS PROART-RTX5090-O32G use?
It uses dual Axial-tech fans, a vapor chamber with heatpipes, a double-vented backplate, and liquid metal thermal compound at the GPU die.
How many monitors can the ASUS PROART-RTX5090-O32G support?
It supports up to 4 simultaneous displays, with outputs including 1× HDMI 2.1b, 2× DisplayPort 2.1b, and 1× USB Type-C.
What PSU is recommended for the ASUS PROART-RTX5090-O32G?
ASUS recommends at least a 1,000W power supply, based on a fully overclocked GPU and CPU system configuration.
