Logitech has listed the G512 X 98 Dual SWAP full-size hot-swappable TMR analog/mechanical gaming keyboard for pre-order on Amazon US. The keyboard is available at $199.99 (Lowest Price on April 28, 2026) across all four variants — (920-013973, 920-013997, 920-013972, 920-013996 ) Linear or Tactile switch options, in Black or White finishes.
Key highlights include the Dual SWAP architecture that allows swapping between magnetic analog and mechanical switches across 39 dedicated TMR beds, Tunnel Magneto-Resistance (TMR) analog sensors with customizable actuation from 0.1 mm to 4.0 mm, Rapid Trigger for instant re-actuation, an 8K polling rate with 0.125 ms response, and a LIGHTSYNC RGB lightbar with per-key 16.8 million colour lighting.

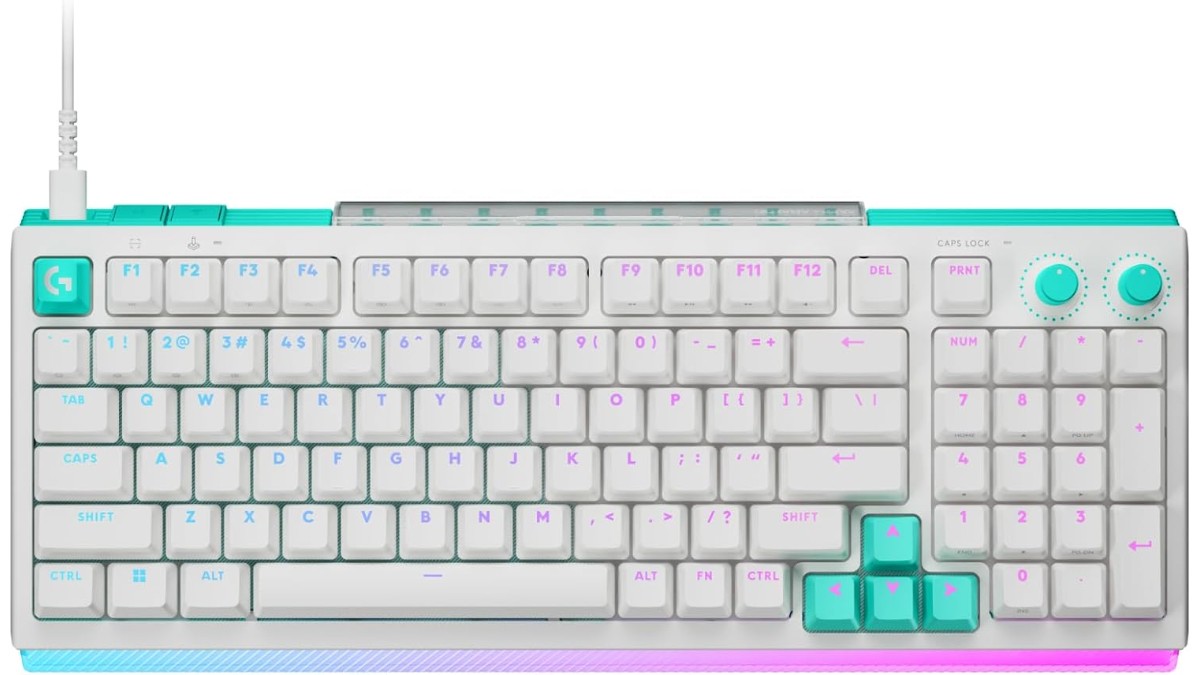

The Logitech G512 X 98 is available in Black and White finishes, with a choice of Linear or Tactile GATERON K20 switch profiles, and ships in a 98% layout that retains the numpad in a compact full-size form factor.
Pricing & Availability
| Variant | Switch | Colour | Launch Price | Link |
|---|---|---|---|---|
| Logitech G512 X 98 (920-013973) | Linear | Black | $199.99 | Amazon US↗ |
| Logitech G512 X 98 (920-013997) | Linear | White | $199.99 | Amazon US↗ |
| Logitech G512 X 98 (920-013972) | Tactile | Black | $199.99 | Amazon US↗ |
| Logitech G512 X 98 (920-013996) | Tactile | White | $199.99 | Amazon US↗ |
| Logitech G512 X Palm Rest 98 (943-001626) | — | — | $44.99 | Amazon US↗ |
Related Post: Logitech G512 X 75 Dual SWAP Gaming Keyboard Available for Pre-Order on Amazon US – Hot-Swappable TMR Analog/Mechanical, 8K Polling, 0.1–4.0 mm Custom Actuation, LIGHTSYNC RGB
Quick Links
Dual SWAP Architecture & GATERON K20 Switches
The G512 X 98 carries Logitech’s Dual SWAP design — the same hot-swappable layout as the 75% model, but in a full-size 98% chassis. The keyboard ships with 9 GATERON K20 magnetic analog switches that can be installed in any of the 39 dedicated DUAL SWAP TMR beds, while the rest of the keys keep hot-swappable mechanical switches. Switch flavours at launch are Linear or Tactile.
TMR Analog Sensors & Customizable Actuation
The analog switches use Tunnel Magneto-Resistance (TMR) sensors for high-resolution position tracking. Per-key actuation can be tuned anywhere from 0.1 mm to 4.0 mm, and Rapid Trigger re-actuates the key the instant it starts moving back up. SAPP (Second Actuation Pressure Point) rings add a tactile bump at a second actuation point — ideal at 2.8 mm for layered controls and complex combos.
8K Polling Rate
The keyboard supports a toggleable 8K (8000 Hz) polling rate alongside a standard 1K mode, with a 0.125 ms response time at 8K.
LIGHTSYNC RGB & Lightbar
Per-key RGB backlighting covers 16.8 million colours, paired with a dedicated LIGHTSYNC RGB lightbar that can be configured for game-reactive effects in Logitech G HUB.
Build & Materials
The chassis uses a silicone gasket mount for sound dampening and feel. Construction includes up to 44% certified recycled plastic, and keycaps are double-shot PBT.
G HUB Customization
The keyboard pairs with Logitech G HUB for key remapping, multi-layer programming, macro creation, and analog profile management — including per-key actuation depth and Rapid Trigger toggles.
Connectivity
Wired USB. Compatible with PC and Mac.
Logitech G512 X 98 Specifications / Technical Details
| Specification | Details |
|---|---|
| Model Numbers | 920-013973 (Linear / Black), 920-013997 (Linear / White), 920-013972 (Tactile / Black), 920-013996 (Tactile / White) |
| Layout | 98% (full-size compact, with numpad) |
| Switch Architecture | Hot-Swappable Dual SWAP (TMR Analog + Mechanical) |
| Switch Options | Linear / Tactile |
| Bundled Analog Switches | 9 × GATERON K20 |
| Analog Beds | 39 dedicated DUAL SWAP TMR beds |
| Analog Sensor | Tunnel Magneto-Resistance (TMR) |
| Actuation Range | 0.1 mm – 4.0 mm (adjustable per analog key) |
| Rapid Trigger | Yes (analog switches) |
| SAPP Rings | Yes (Second Actuation Pressure Point, ideal at 2.8 mm) |
| Polling Rate | 1K / 8K toggle |
| Response Time | 0.125 ms (at 8K) |
| Backlighting | LIGHTSYNC RGB, per-key, 16.8 million colours |
| Lightbar | LIGHTSYNC RGB lightbar |
| Mounting | Silicone gasket mount |
| Keycaps | Double-shot PBT |
| Recycled Plastic | Up to 44% certified recycled plastic |
| Software | Logitech G HUB (remapping, macros, analog profiles, multi-layer) |
| Connection | Wired USB |
| Compatibility | PC, Mac |
| Colours | Black / White |
What’s in the Box
- Logitech G512 X 98 Gaming Keyboard
- 9 × GATERON K20 magnetic analog switches
- USB cable
- Documentation
Matching Accessory: Logitech G512 X Palm Rest 98
Logitech also lists a dedicated G512 X Palm Rest 98 (model 943-001626) for pre-order on Amazon US at $44.99. The palm rest is sized to the exact length of the G512 X 98 keyboard for a gap-free fit, and is engineered for both the 4° and 8° keyboard angle options.
It is built from solid translucent acrylic that captures and amplifies the keyboard’s LIGHTSYNC RGB lightbar, extending the lighting forward across the wrist rest. The top surface carries a laser-etched pattern with a subtle G logo that diffuses RGB into a textured glow, while a matte UV coating keeps the surface resistant to glare and fingerprints.
| Accessory | Model | Launch Price | Link |
|---|---|---|---|
| Logitech G512 X Palm Rest 98 | 943-001626 | $44.99 | Amazon US↗ |
